Le Petit Prince : print params

posted in: 3DPrint, costume, sewing, tech | 0

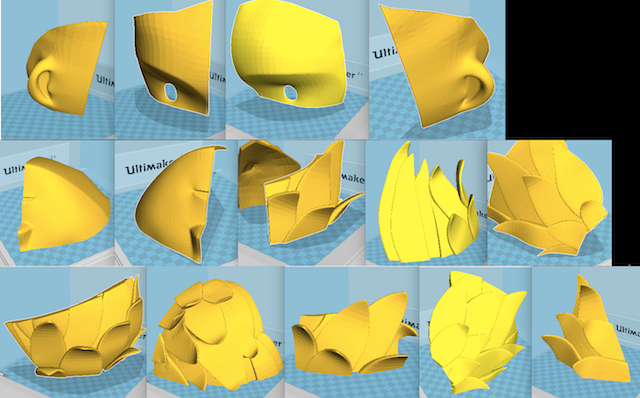

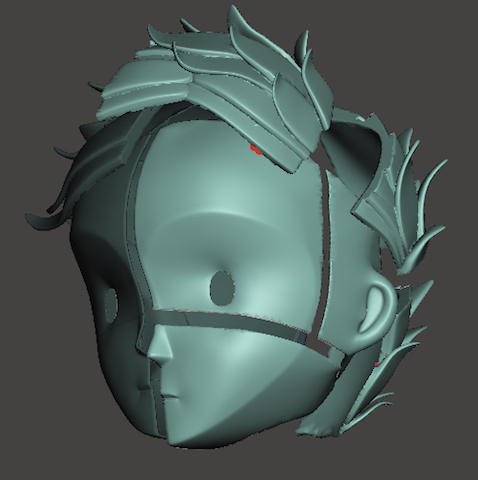

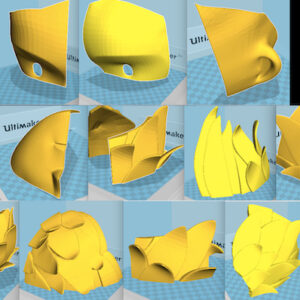

the time has come! for the life-size printing šŸ™‚ i’m getting a good hang of splitting the pieces and printĀ ready with minĀ overhang issue with max printable area .

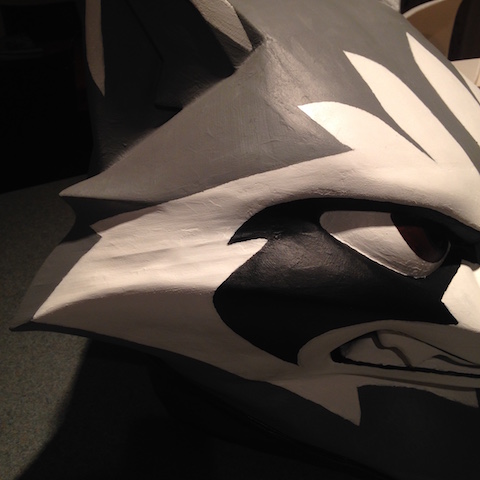

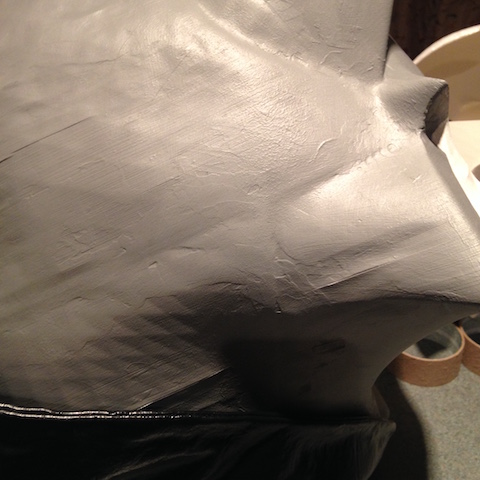

also i’ve noticed the crack on Rocket’s print where surface was so thin after 2 yrs. i skimmed on infill pass because I did’t quite understand even a little amount of support inside makes difference in surface strength and impact on printing time and material is negligible.

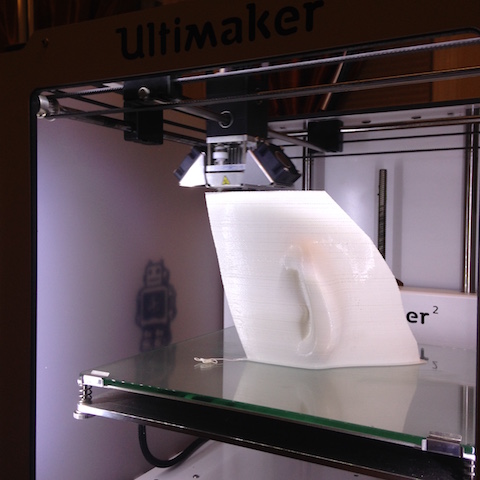

Ultimaker 2 (face):

layer height 0.2mm
shell thickness 0.8mm
fill density 10%
print speed 50mm/s
bot/topĀ thickness 0.6mm
nozzle size 0.4mm

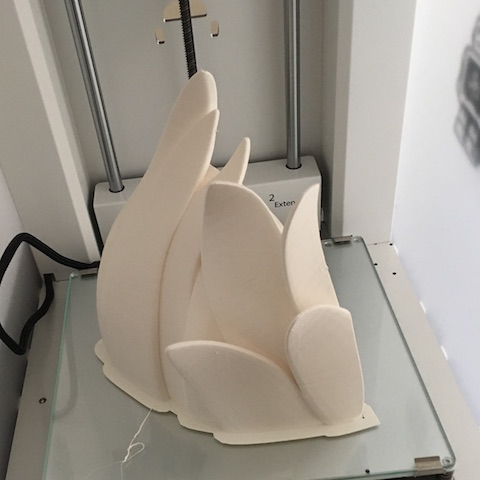

Ultimaker 2+ Extended (hair) :

layer height 0.2mm
shell thickness 0.8mm
fill density 5%
print speed 20mm/s
bot/topĀ thickness 0.4mm
nozzle size 0.8mm
